Aircraft EMI analysis should move to an external EMC laboratory when the program needs controlled testing, calibrated instrumentation, or compliance-ready documentation.
Internal troubleshooting is useful for early screening, but it cannot confirm that a suspected source or mitigation will work in the relevant aircraft configuration without measured validation.
The right choice depends on the integration risk, available test capability, schedule sensitivity, and evidence required by the program. A focused test plan can reduce avoidable retest cycles by defining modes, wiring, configuration, and pass/fail expectations before equipment reaches the lab.
For procurement teams, a clear EMC test laboratory quotation is more useful than a broad request for “EMI testing” because it exposes setup, engineering, reporting, and retest assumptions early.
At a Glance
- Aircraft EMI analysis examines interference sources, coupling paths, affected systems, and mitigation results.
- Internal checks can support early fault isolation, while controlled pre-compliance or external EMC lab testing provides stronger measurement evidence.
- Test conclusions can change with wiring routes, software modes, power conditions, installed equipment, and aircraft configuration.
| Approach | Best Used For | Evidence and Limitations |
|---|---|---|
| In-house screening | Early design reviews, visible installation issues, and initial source-path-victim assessment. | Fast and useful for narrowing suspects, but results depend on available tools and may not represent a controlled test environment. |
| Pre-compliance testing | Finding likely emissions or susceptibility concerns before formal validation. | Can reveal configuration-sensitive issues early; scope and relevance to program requirements must be defined. |
| External EMC laboratory and consulting services | Programs needing calibrated equipment, controlled facilities, engineering reports, or compliance documentation support. | Provides more structured evidence, but the RFQ must clearly state test articles, modes, configurations, and deliverables. |
What an Effective Aircraft EMI Review Should Deliver
The Immediate Goal: Identify Sources, Paths, and Affected Systems
An effective review should identify the likely emitter, the potentially affected victim, and the coupling path between them. Interference may affect avionics, communications, navigation equipment, sensors, wiring, and electronic control units. The task is not simply to find a noisy item; it is to understand how energy may reach a function that is behaving unexpectedly.
The review should also define what evidence is needed next. That may be a wiring inspection, a controlled operating check, spectrum analyzer measurement, a shielding review, or an EMC test laboratory engagement. Avoid treating an early suspicion as a confirmed root cause without measurement.
Why Avionics Faults May Appear Only in Certain Operating Configurations
EMI behavior can change when software modes, power conditions, cable routes, installed equipment, or aircraft configuration change. A system may appear stable in one mode and show symptoms only when another transmitter, power state, sensor, or control unit is active. This is why the test plan should list operating modes, installation state, wiring configuration, and relevant equipment combinations.
A test result from an incomplete configuration may still be useful for investigation, but it should not automatically be treated as proof of installed-system performance.
Three-Line Decision Guide for Internal Checks Versus External Testing
Use internal checks when the team needs to document the symptom, inspect installation details, and narrow likely paths. Use pre-compliance testing when design decisions are still open and the team needs earlier measurement feedback. Use an external EMC test laboratory when controlled facilities, calibrated instruments, formal reports, or aerospace compliance consulting support are needed.
Compare Internal Screening, Pre-Compliance Testing, and EMC Lab Services
Capability, Evidence Quality, Schedule Impact, and Typical Project Value
Internal screening usually creates the fastest feedback loop because the integration team can inspect hardware and repeat operating conditions directly. Its main value is early risk reduction: confirming what changed, which function is affected, and where coupling may occur.
Pre-compliance work adds measurement discipline before the program depends on formal validation. It can help teams evaluate cable shielding, bonding, filtering, enclosure design, and physical separation while changes are still manageable. External laboratory services are most valuable when the project needs controlled conditions and documented engineering evidence for program decisions.
When Calibrated Instruments and Controlled Facilities Become Necessary

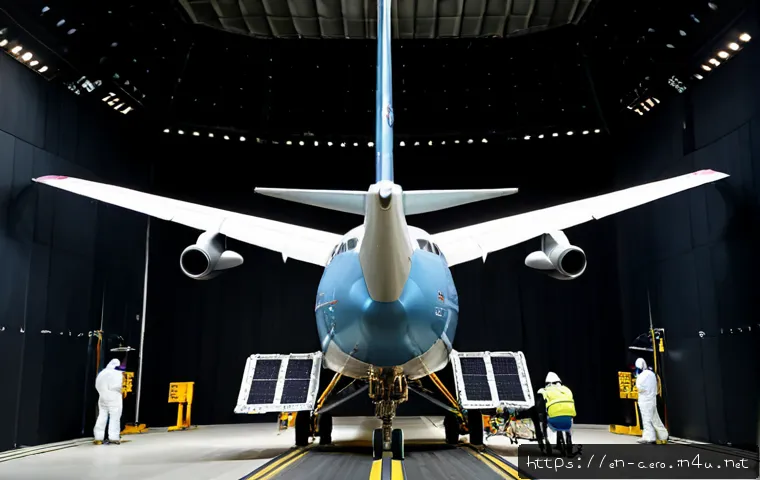

Calibrated instrumentation and controlled test environments become important when the team must distinguish an actual interference mechanism from an assumed one, compare configurations reliably, or prepare formal documentation. An external laboratory may also provide engineering reports that describe the setup, equipment under test, modes, instrumentation, observations, and configuration control.
When comparing avionics validation services, ask whether the provider can support the relevant equipment type, installation environment, and documentation expectations. Do not assume that a generic test capability is appropriate for every aircraft program.
Cost Drivers to Include When Requesting an EMC Test Quotation
An EMC test laboratory quotation should define the test article, planned setup, operating modes, wiring harnesses, support equipment, instrumentation, engineering support, retesting assumptions, and final report requirements. These details affect effort even when the core request sounds simple.
Also clarify who supplies fixtures, cables, software loading, power interfaces, test operators, and configuration records. A vague request can create schedule risk if the laboratory receives an article that cannot be operated or does not represent the intended installation.
A Practical Workflow for Finding and Containing Interference
Define the Affected Function and Reproduce the Operating Condition
Start with a precise statement of the affected function. Record what happens, which mode is active, what equipment is installed, and which power conditions apply. If the condition can be reproduced, document the smallest repeatable setup rather than relying on general descriptions.
Map Likely Emitters, Victims, and Coupling Paths
List possible emitters, affected systems, and plausible paths through wiring, connectors, structure, power distribution, or nearby RF sources. This map guides the next inspection and avoids changing multiple variables at once. It is especially useful when intermittent reports involve several installed systems.
Inspect Wiring, Bonding, Shielding, Filtering, and Installation Changes
Review grounding and bonding, cable shield termination, connector termination, filtering, enclosure condition, and cable separation. Check recent installation changes as well. A routing revision, equipment substitution, or changed connector treatment can alter EMI performance even if the individual equipment item has not changed.
Record Configurations and Validate Corrective Actions
Every corrective action should be tied to a recorded configuration. Note the wiring route, hardware state, software mode, power condition, and installed equipment used during the check. A proposed mitigation is not verified merely because symptoms disappear once; it should be validated in the relevant configuration.
Design and Installation Errors That Create Expensive Retest Cycles
Incomplete Cable Shield Termination and Poor Bonding Continuity
Shielding and bonding performance can depend on installation details, not just the cable or enclosure selected. Incomplete shield termination or poor bonding continuity can undermine an otherwise reasonable mitigation approach. Inspect the full interface, including connectors and installation hardware.
Cable Routing Too Close to High-Energy or RF Sources
Physical separation can influence EMI performance. Routing that places sensitive wiring near high-energy or RF sources may create a coupling path that is absent in a bench setup. Compare installed routing with the configuration used during analysis or testing.
Testing an Unrepresentative Configuration or Missing Active Operating Modes
A test article may behave differently when active modes, connected systems, or aircraft power conditions change. Missing a relevant mode can lead to false confidence and later retesting. Build a configuration matrix before test execution and identify which states are essential to evaluate.
Treating a Temporary Workaround as Verified Compliance Evidence
A workaround can be useful for containment, but it does not replace validation. If a mitigation includes a filter, cable change, shielding change, or physical separation change, confirm its effect with the relevant installation configuration and required documentation process.
When Different Aircraft Programs Need Different Test Strategies
New Avionics Integration and Major Modification Programs
New integration and major modification work benefits from an early EMI design review. The team can assess wiring, bonding, shielding, cable routing, operating modes, and installation assumptions before the configuration becomes harder to change. Pre-compliance testing may help prioritize design refinements before external validation.
Legacy Aircraft Troubleshooting and Intermittent Field Reports
For legacy aircraft, begin with the reported operating condition and any known configuration changes. Intermittent symptoms may depend on equipment combinations or power states, so a structured reproduction plan matters. Avoid assigning the source to a suspected unit without measured evidence.
Component Suppliers Preparing Evidence for Integrators
Suppliers should provide clear test-article definitions, operating instructions, cable requirements, supported modes, and configuration information. Integrators need to understand what was evaluated and what installation factors may affect results. This makes later avionics integration more predictable.
Small Engineering Teams Deciding Whether to Outsource Analysis
Small teams can often perform a strong desktop review and installation inspection internally. Outsourcing becomes practical when the team lacks spectrum analysis capability, controlled test access, specialized RF shielding knowledge, or capacity to prepare detailed documentation. Aerospace compliance consulting can also help define a more focused laboratory scope before booking test time.
Selection Criteria and Comparison Summary
Before approving an EMC testing or consulting provider, check these points:
- Relevant capability: Can the provider support the equipment type, intended installation context, and needed emissions or susceptibility work?
- Test scope: Are operating modes, frequency ranges, pass/fail criteria, instrumentation, and configuration control clearly described?
- Facility and equipment: Ask how calibrated instruments and controlled test environments will be used for the planned work.
- Engineering support: Confirm whether the scope includes setup review, troubleshooting support, mitigation discussion, and retest handling.
- Reporting depth: Request clarity on test setup records, configuration details, observations, results, and final documentation.
For an EMC test laboratory quotation, review the provider’s official service details and request a written scope that matches the actual aircraft configuration.
Conclusion
Aircraft EMI analysis is most useful when it connects symptoms to a documented source-path-victim review and a controlled validation plan. Internal screening can prevent wasted effort, while pre-compliance and external laboratory work can provide more structured evidence when the program requires it. The key is configuration discipline: changes in wiring, modes, power, or installed equipment can change the result. A narrowly defined RFQ helps teams compare EMC lab services on capability and deliverables rather than on a vague testing label.
Useful Information to Keep in Mind
Configuration control is a technical tool. Record the operating mode, wiring arrangement, installed equipment, power condition, and software state used for each observation. This record helps distinguish a repeatable EMI issue from a result caused by an undocumented setup change.
Important Notes
The applicable compliance standard, limits, methods, certification documentation, and acceptance criteria must be confirmed for the individual aircraft program. The presence of a symptom does not establish its source, and a proposed mitigation should not be assumed effective without validation in the relevant installation configuration. Laboratory cost, duration, and availability also require direct confirmation with the selected provider.
Frequently Asked Questions
Q1. When should an aircraft program hire an external EMC laboratory for EMI analysis?
A1. Consider an external EMC laboratory when the program needs calibrated equipment, a controlled test environment, engineering reports, or support for compliance documentation. It is also a practical option when internal tools cannot reproduce the relevant operating condition or provide sufficient measurement evidence.
Q2. What information should be included in an RFQ for avionics EMI testing?
A2. Include the equipment under test, intended installation configuration, wiring and cable details, operating modes, power conditions, frequency ranges, proposed pass/fail criteria, required instrumentation, support equipment, configuration-control needs, retest expectations, and report deliverables. Ask the provider to identify any missing information before scheduling.
Q3. Is pre-compliance testing worth the cost before formal aircraft EMC validation?
A3. Pre-compliance testing can be valuable when it helps identify likely emissions or susceptibility issues while routing, shielding, bonding, filtering, and enclosure decisions are still open. Its value depends on whether the scope represents the intended configuration and whether the findings can guide the next design or laboratory decision.
